DC FAST SINGLE GUN WALLBOX
Suitable for
- Electric Car Fleets
- Highway Restaurants
- Hotels/Malls
- Airports
Variants
- CCS DC 30KW Three Phase
- GB/T DC 15kW Three Phase
Features
- CCS - 2 Gun with 5m Cable 7 Inch Touch-Screen Display
- >=96% Efficiency; Forced Air Cooling
- OCPP 1.6J Enabled; Wi-fi, GSM & LAN for Connection RFID Card for Authentication
- Inbuilt Metering; RGB LED for Status Indication Protections: Over/Under Current;
- Over/Under Voltage Short-Circuit; Leakage Current; Earth Detection
- Wall or Pedestal Mounting (Pedestal optional)
DC FAST SINGLE & DUAL GUN
Suitable for
- Electric Car Fleets
- Electric Bus/Truck Fleets
- Highways
- Hotels/Malls
Variants
- Single Gun Charger CCS : 60KW; 90KW; 120KW
- Dual Gun Charger CCS : 60KW; 120KW
- GB/T : 30KW (15+15)
Features
- Dynamic Load Management (Optional) CCS -2 Gun with 5m Cable
- 7 Inch Touch-Screen Display
- >=96% Efficiency; Forced Air Cooling
- OCPP 1.6J Enabled; Wi-fi, GSM & LAN for Connection
- RFID Card for Authentication
- Inbuilt Metering; RGB LED for Status Indication
- Protections: Over/Under Current; Over/Under Voltage Short-Circuit; Leakage Current; Earth Detection
- Floor Mounting (all 4 Side access required)
PORTABLE EV CHARGER (TYPE - 2 AC)
Suitable for
- Electric Car
- Home Charging
- On-the-way Charging
Variants
- With Display :: 3.3KW Single Phase; 7.4KW Single Phase
- Without Display :: 3.3KW Single Phase; 7.4KW Single Phase:
Features
- Type 2 Gun with 5m Cable
- 2.8 Inch Display (In ‘with Display’ variant) Settable Current Rating
- Touch Configuration
- Protections: Over/Under Current Over/Under Voltage
- Earth Detection

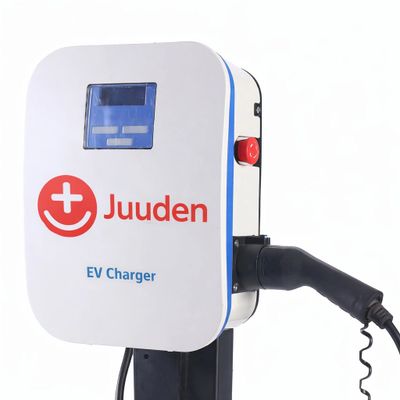

AC EV CHARGER, TYPE - 2,SINGLE & DUAL GUN
Suitable for
- Fleet Operation
- Home Charging
- Multi-Home Societies
- Restaurants / Hotels
Variants
- Single Gun :: 7.4kW Single Phase; 11kW Three Phase; 22kW Three Phase
- Dual Gun :: 15kW (2x7.4kW) Three Phase
Features
- Plastic & Metal Body option Type - 2 Gun with 5m Cable
- Character Display; 4.3Inch option in Metal Body OCPP 1.6J Enabled; Wi-fi & GSM for Connection RFID Card for Authentication
- Inbuilt Metering; RGB LED for Status Indication Wall or Pedestal Mounting (Pedestal optional)
- Protections: Over/Under Current; Over/Under Voltage Earth Detection; AC & DC Leakage
AC EV CHARGER,3 OUTPUT,HYBRID - WITH OCPP
Suitable for
- Fleet Operation
- Electric 2 Wheelers
- e-Rickshaw
- Electric Loaders
Variants
- Bharat AC :: 10KW (3x3.3KW) Three Phase
- Hybrid AC :: 14kW (2x3.3KW + 1x7.4kW) Three Phase
Features
- Plastic & Metal Body option
- Type - 2 Gun with 5m Cable in Hybrid Charger
- Character Display; 4.3Inch option in Metal Body
- OCPP 1.6J Enabled; Wi-fi & GSM for Connection
- RFID Card for Authentication; Push Button Operation
- Inbuilt Metering; RGB LED for Status Indication
- Wall or Pedestal Mounting (Pedestal optional)
- Protections: Over/Under Current; Over/Under Voltage Surge Protection; Earth Detection; AC & DC Leakage
